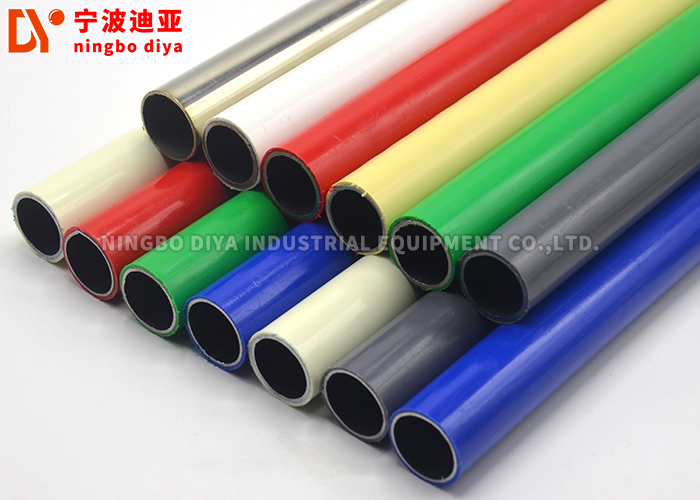

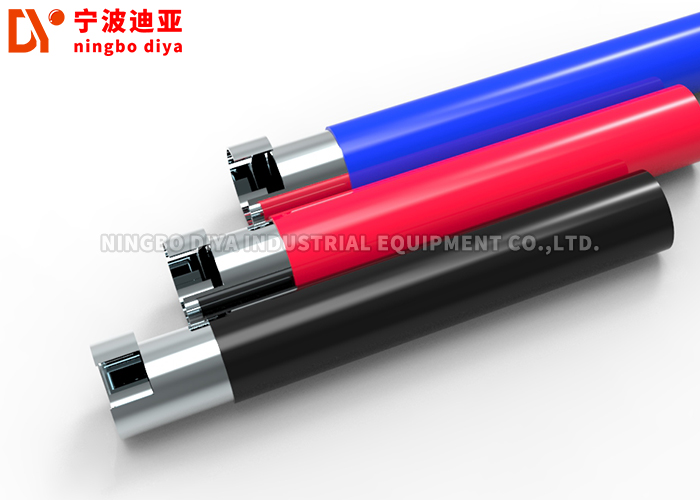

Industrial PE coated Lean Pipe/Tube With Connector to assemble worktable or working vehicle
| Processing: | Cold rolled steel sheet→Clean&Cut→Make it Round→Seamless Welded→Spraying antirust inside→Making the pipe rounder and straighter→Plastic Coated→Cooling→Cooling Again→Cutting into the length→Packaging; |
| Material: | ABS|PE|PP plastic coating + iron pipes + anti-rust painting ; |
| Outer diameter | 10.7/13.4/12.8/15.8/18.8/21.7/19.7/22.9/25.2/29.4/27.4/31.7mm; |
| Inner diameter: | 10.05/12.65/12.1/15.1/18.1/21/19/22.2/24.4/28.6/26.6/30.8mm; |
| Thickness: | 0.30/0.40/0.8/1.0/1.2/1.5mm; |
| Colors: | Beige,Ivory,Black,Gray,Green,Red,Blue and so on ; |
| Package: | 20Pcs/Carton |
| MOQ: | 1000Meters |
Eco protection;easy installing; easy remove
Easy design;easy DIY;multitudinous structres
Widely use; save cost; Inexpensive
Lean Pipe Production Line
- Lean management table
- Lean Office Furniture
- Lean pipe assembly line
- Lean Warehouse shelves
| 1. Features | 1. Using at the places such as assembly line or distribution center,convenient for selection. |
| 2. Upright frame structure, with bearing grider, roller, damping roller, and buffer separator. |
| 3. Aluminum or steel roller rail system. |
| 4. Pallets/Boxes move along in transport channel depending on gravity. |
| 2. Material: | Aluminium or steel roller rail |
| 3. Load Capacity (mm): | 1000kg at the most. |
| 4. Main Parts Specs(mm): | | Diameter | Specification |
| PE Pipe | Ø28mm | 0.8/1.0/1.2/1.5/2.0mm |
| PVC Pipe | Ø28mm | 0.8/1.0/1.2mm |
| ABS Pipe | Ø28mm | 0.8/1.0/1.2mm |
| ESD PE Pipe | Ø28mm | 0.8/1.0/1.2mm |
| 5. Certificates. | CE certified, ISO9001, |
| 6. Quick Delivery. | Within 15 workdays (negotiable), according to quantity |
The Advantages of Coated Pipe:
1. Customers can select the color of their choice. Variety of colors is available.
2. In Cost effective Solution
3. Durable and flexible systems
4. Rust inhibitor is applied to inner surface of the pipes for extended service life.
Our Services
1. We have professional engineer to do after-sale service if needed.
2. Local service will be done by our local agent if needed.
3. OEM is welcomed or design as customer request.
Product Tags:
|
|

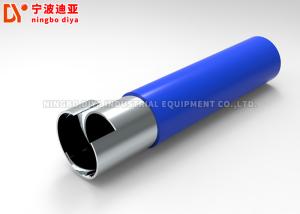

Cold Rolled PE Coated Lean Tube 0.8 - 2.0mm Thickness Q195 Steel Material Images
|
